BIT-MSE-4K60-Mini104Pro 4-Channel 4K60 Video Splitter with Simultaneous Output | Bitvisus

BIT-MSE-4K60-Mini104Pro 4-Channel 4K60 Video Splitter with Simultaneous Output | Bitvisus

31.100,00 руб
32.000,00 руб 31.100,00 руб
Sale Sold out
Get a quote

The price of all our products are single device sample prices, if you want to get special deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

Description
  • BIT-MSE-4K60-Mini104Pro Creative Ultra HD processor is an industrial-grade high-performance product specially developed for the fusion requirements of multi-desktop operation and multi-channel projection. It uses HDMI / DP input interface and HDMI output.
  •  Ultra-high resolution, output maximum support resolution 7680x2160@30Hz / 3840x4320@30Hz, downward compatible with low resolution.
  • Support 1x1,1 xN, Mx 1 (multiple parallel can achieve MxN),  point to point, no stretching, no deformation, wide vision.
  •  Adopt 28nm process high-end programmable FPGA chip, pure hardware processing architecture, no poisoning, no crash, nanosecond level processing speed, no delay, no tail.
  •  Industrial grade design, more reliable quality, the use of fully imported industrial chips, multi-layer PCB plate, input signal balance gain, output signal drive amplification.
  •  Use the six-digit dial switch, binary mode, to realize the dial switch EDID, switch to the resolution you want at any time.
  •  Low power consumption, energy saving and environmental protection design, internal conduction and heat dissipation, without any external heat dissipation measures, high reliability.
  • Support audio separation, 3.5mm audio port; support HDMI audio out.

Specification
Product name
BIT-MSE-4K60-Mini104Pro
The est video pixel frequency of
input interface
600MHz
The highest video pixel frequency
of the output interface
300MHz
Enter the interface type
HDMI interface, DP interface (alternative, HDMI preferred)
HDCP function
Support for HDCP 2.2
Output interface type
The 4 HDMI outputs
13.5mm audio output interface
Audio function
Support 3.5mm audio separation; HDMI
audio comes out
The 2-screen supports a
typical resolution
2x1920x1080@60Hz
1920x1080x2@60Hz
The 3-screen supports a
typical resolution
3x1920x1200@60Hz
3x1920x1080@60Hz
1920x1200x3@60Hz
1920x1080x3@60Hz
The 4-screen supports a
typical resolution
4x1920x1200@60Hz
4x1920x1080@60Hz
1920x1200x4@60Hz
1920x1080x4@60Hz
2x1920x1080x2@60
Product factory default
resolution
3840x2160@60Hz
2x2 with the highest
support resolution
3840x2400@60Hz
3x1 / 1x3 with the highest
1920x3600@60Hz/5760x1200@60Hz
4x1 / 1x4 with the highest
support resolution
1920x4800@60Hz/7680x1200@60Hz
net weight
0.8KG
tare
1.1KG

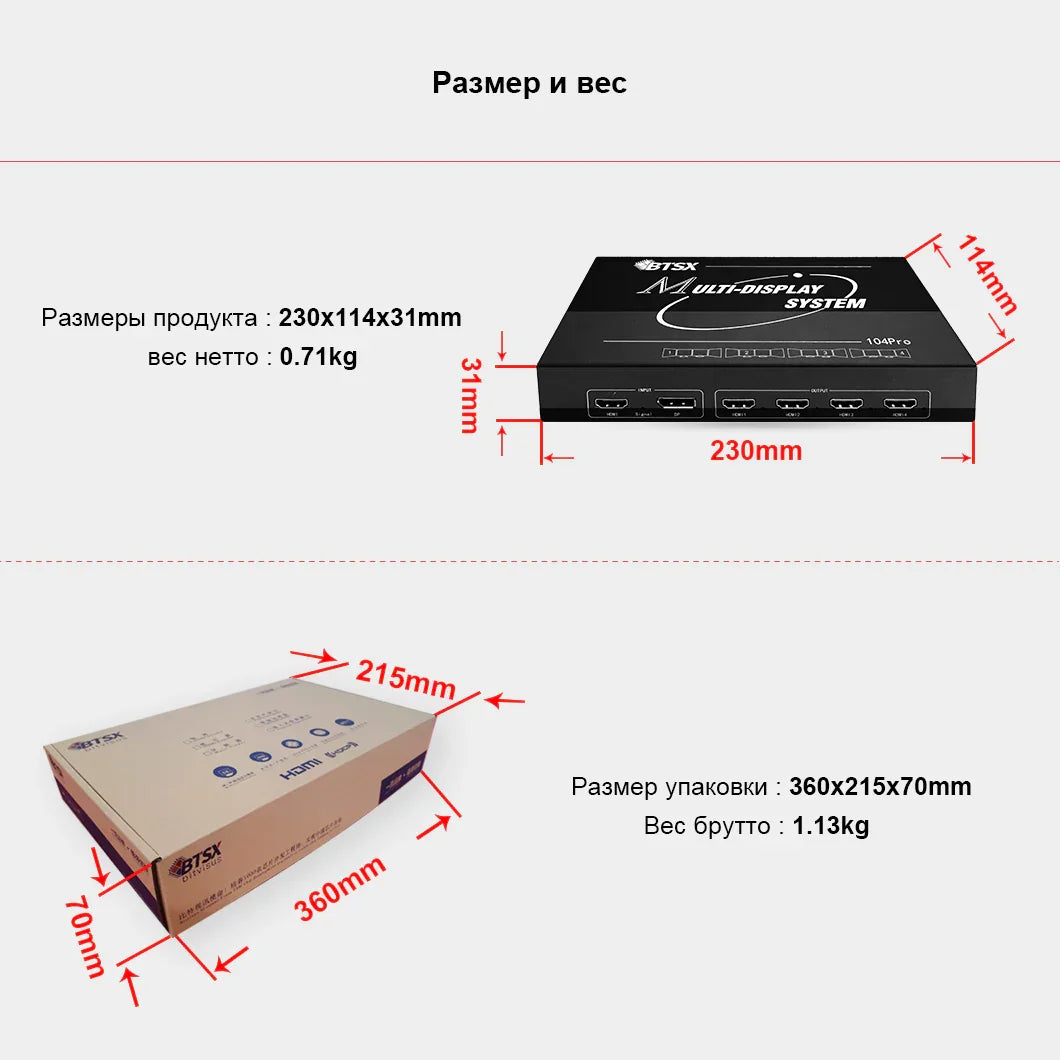

Equipment size
Length 230mm * width 113mm * height
28mm
packing measurement
Length 360mm * width 215mm * height
70mm
