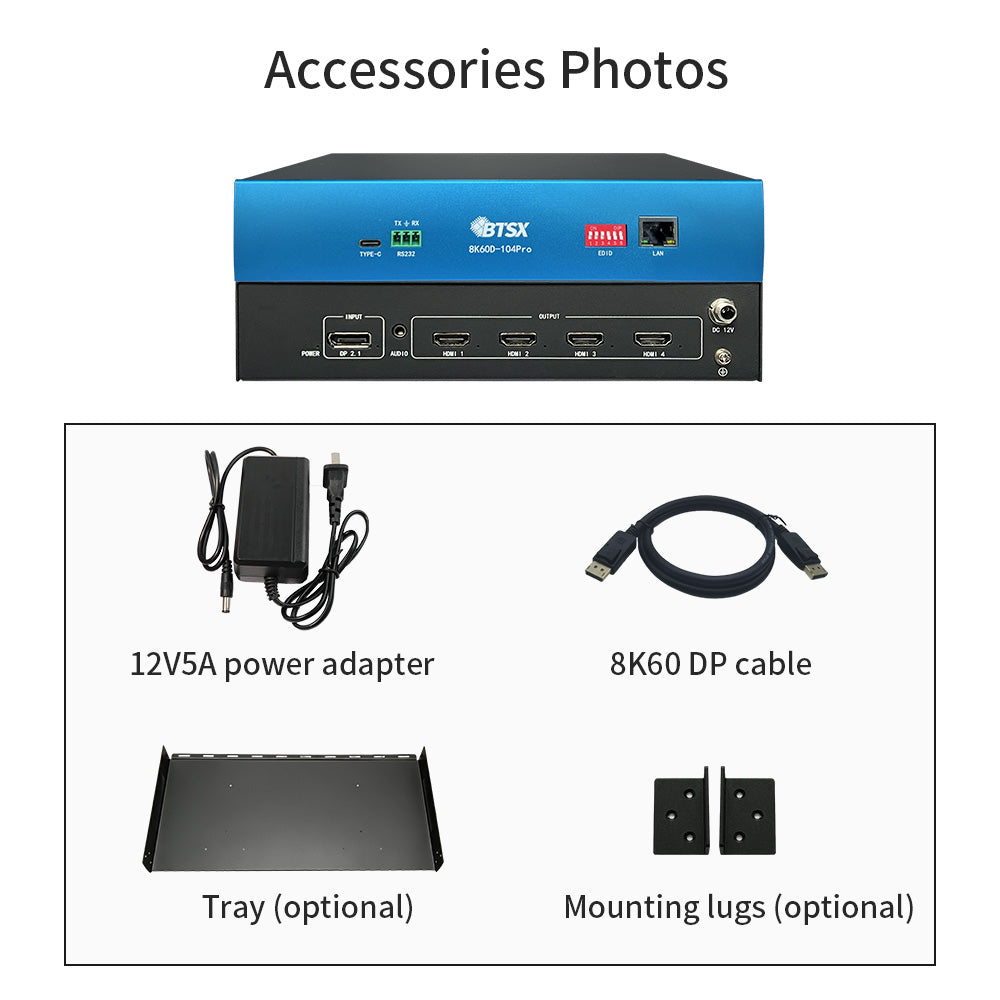

BIT-MSE-8K60D-104Pro Video Wall Processor 8K60 Multi-screen extender Suitable for multi-channel projection fusion Customization supported

Get a quote

📣The price of all our products is a single device sample price, if you want to Get Special Deals, please click the bottom right corner of the chat with us to get the latest quotation. You can also click here to leave your WhatsApp or email, we will contact you as soon as possible!

ProductOverview

BIT-MSE-8K60D-104Pro is an 8K60 multi-screen extender independently developed by Bitvisus. lt is an industrial-grade high-performance product specially designed for the needs of multi-desktop operation and multi-channel image processing display. The product supports 1-channel DP interface for 8K60 input and 4-channel HDMl interfaces for 4K60 output, and is backward compatible with conventional resolutions. Whether it is a 4K large-screen projector or a high-definition display, it can stably output clear and smooth images. lt is widely used in ultra-high resolution desktops, multi-channel 4K60 projection, exhibition halls, virtual reality, ring-screen cinemas and other application fields.

Description

1、 Supports 1 channel of 8K60 YUV420 signal input, with HDMI or DP as two options, and priority access to HDMI interface. Supports diversification to ensure clear images and rich details.
2、Supports 4-channel 4K60 output via HDMI ports.
3、Supports 1 × 1, 1 ×2, 1 ×3, 1×4, 2×1, 3×1, 4×1, and 2×2 tile configurations. No stretching, no distortion, and a wider field of view.
4、Support EDID management, flexible selection of EDID through dip switch.
5、Support parallel use of multiple devices to ensure real-time display requirements on large
screens
6、Adopting a high-end programmable FPGA chip with 28nm technology and a fully hardware real-time processing architecture, the processing speed is ultra fast without delay.
7、Industrial grade design, thickened 6-layer PCB board, 16KV ultra strong anti-static ability, ultra strong product stability
8、Low power consumption, energy-saving and environmentally friendly design, equipped with overheating protection and anti-interference design, using 18W thermal conductivity material, internal heat dissipation, ensuring long-term stable operation of the equipment, suitable for
long-term use in various environments.
9、The structure supports desktop small boxes and can also add 1U ear mounted cabinets. At the same time, modular design is adopted for centralized power supply, with 2 cards combined
into 1 1U chassis and 4 cards combined into 1 2U chassis.
10、Paired with Bitvisus Window Opening Software, it can achieve 8K60 multi screen display

Product Specifications
